Introduction

SFHound is an open-source data collector and graph builder for Salesforce organisations. It queries the Salesforce REST, Tooling, and Metadata APIs using a JWT-authenticated Connected App, then emits a BloodHound OpenGraph-compatible JSON file that BloodHound CE ingests directly.

The result is a navigable property graph of every identity, permission, and relationship in your Salesforce org — queryable with Cypher and traversable with BloodHound’s shortest-path engine.

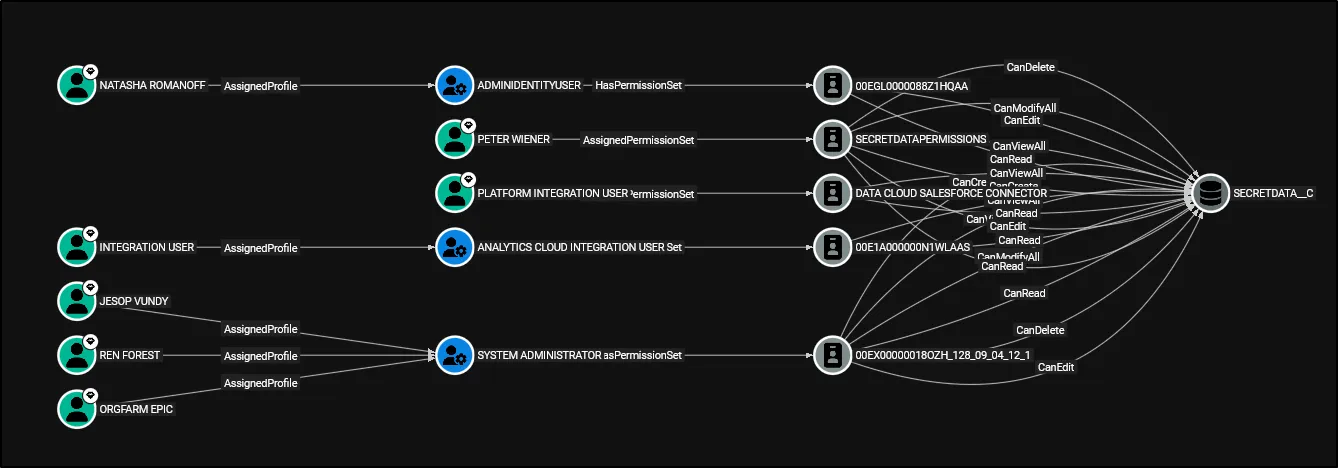

SFHound graph in BloodHound CE showing user-to-object permission paths
SFHound graph in BloodHound CE — users, permission sets, and object-level edges resolved into a traversable property graph.

What SFHound collects

CategoryWhat is extracted
UsersAll active and inactive User records with key profile attributes
ProfilesEvery Profile with its backing PermissionSet and system permission flags
Permission SetsStandalone Permission Sets, including aggregate sets owned by groups
Permission Set GroupsGroups of Permission Sets with constituent membership
Role HierarchyEvery Role and its parent/child relationships
Public Groups & QueuesGroup membership (direct and nested), Queue SObject ownership
Object PermissionsCRUD and ViewAll/ModifyAll flags per object per Profile/PermissionSet
Field PermissionsIsVisible and ReadOnly FLS edges per field per Profile/PermissionSet
Connected AppsOAuth apps with admin-approval settings and creator provenance
OWD SettingsInternalSharingModel and ExternalSharingModel on every SObject

Core capabilities

Identify, Analyse, and Execute Attack Paths

BloodHound’s shortest-path queries run natively on SFHound’s output. In seconds you can answer:

  • Which users have a path to ModifyAllData?
  • What is the shortest chain from a compromised user to AuthorApex?
  • Who can bypass all sharing rules via CanModifyAll on a custom object?

Audit Identity and Access Management

SFHound surfaces both the configurations (what permissions exist) and the outcomes (which humans hold which permissions through any combination of assignment). The role hierarchy, nested group membership, and Permission Set Group expansion are all resolved in the graph.

Map Field and Object-Level Permissions

Every CanRead, CanEdit, CanDelete, CanViewAll, CanModifyAll, IsVisible, and ReadOnly relationship is modelled as a typed edge. Field-Level Security queries that would require dozens of SOQL joins become single-hop Cypher matches.

Enumerate OAuth and API Attack Surface

CanAuthorize edges link Profiles and Permission Sets to the Connected Apps their holders may authorise. CreatedBy edges record which admin registered each app — useful for provenance audits and insider-threat investigations.

Design principles

System permissions as edges, not nodes. Rather than storing PermissionsModifyAllData = true as a node property, SFHound emits a ModifyAllData edge from the granting Profile/PermissionSet to the central SFOrganization node. This means MATCH (u:SFUser)-[*1..5]->()-[:ModifyAllData]->(org:SFOrganization) is all you need.

No dangling edges. Aggregate PermissionSet nodes generated internally by Salesforce for every PermissionSetGroup (the 0PSG… IDs) are materialised as placeholder nodes so every CRUD and FLS edge has a fully-anchored source.

Shared SObject lookup. Both object-permission and queue-ownership builders resolve SObject API names through the same QualifiedApiName → DurableId lookup, ensuring consistent node IDs across all edge types.

Limitations

  • Individual SharingRule metadata (AccountSharingRule, etc.) requires the Salesforce Metadata API and is not currently extracted. OWD settings are captured per object.
  • Queue and group membership in very large orgs (100 000+ GroupMember records) may be slow to extract.
  • Field permission extraction can produce a large number of edges; consider scoping to custom fields for initial analysis.
  • Auto-ingest does not clear the BloodHound database before loading. Clear it manually if you need a clean slate.

Tested environments

EnvironmentStatus
Developer Edition✅ Tested
Sandbox✅ Tested
Production (small–medium)⚠️ Likely works; feedback welcome
Production (large, 10 000+ users)⚠️ May be slow; field permissions especially
